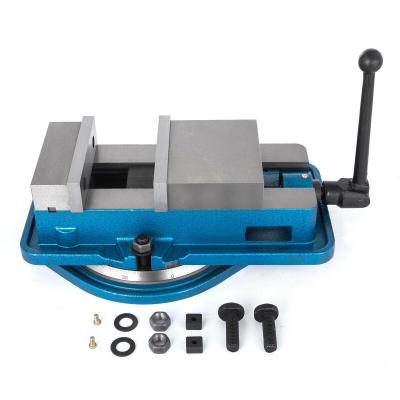

100 mm Accu-Lock Milling Machine Vice QM16100.

Scope and features of a vice for a milling machine QM16100

The rigid-fixing rotary machine vice QM16100 is used for securing workpieces on milling machines or machines with numerical control, and can also be used on cutting machines and drilling machines.
The rotating base of the QM16100 vice allows you to clamp workpieces with rotation in a horizontal plane, which provides a wide range of applications for the vice.
The scale on the rotating base of the QM16100 vise is mechanically engraved, which ensures excellent readability of the scale and its unlimited service life.
The clamping jaws of the machine vice are made of high quality hardened steel and then ground.
The clamping jaws are attached to the milling vice using bolts, which allows them to be replaced if necessary.
The screw design is a closed screw. The screw is protected from chips and dirt, which significantly extends the service life of the machine vice.
The needle bearing in the vice body ensures smooth clamping of the workpiece.
The machine vice can be used both with and without a rotary base.
In the lower surface of the machine rigid-fixing vice there are grooves for installing fixing crackers, which make it possible to more securely fasten the vice on a milling or other machine.

Overall dimensions of the machine vice: 330x205x130 mm

Features of QM16100 machine vice.

The design of the machine vice has a special spherical segment located in the movable jaw. The structural presence of a spherical segment in the vice makes it possible to exert a vertical force action directed downwards during the clamping of the workpiece. This design is specially designed to enhance the longitudinal horizontal compression of the workpiece. This distinctive feature of the QM series milling vice avoids vertical lifting of the workpiece when clamping it, and also prevents deformation of the surface shape of the clamped workpiece.

Milling machine vices can clamp workpieces of different widths due to the ability to reposition the clamping jaws.
The clamping jaws can be installed in four positions.
The maximum width of the workpiece secured in a vice is:

L1 = 116 мм
L2 = 175 мм
L3 = 229 мм
L4 = 279 мм

The QM series machine vice is made of high-strength ductile iron with nodular graphite, providing better impact and fatigue resistance.
More detailed information about the material of manufacture.

Technical characteristics of the vice for the QM16100 milling machine

Technical characteristics
Vise model	QM16100
Jaw width, mm	100
Height of jaws, mm	32
Vise height, mm	130
Height of vice without base, mm	93
Maximum opening, mm	116
Groove width, mm	14
Rotating base	is
Scale value on rotary base	1°
Clamping force, N	19000
Vise precision
Parallelism	0.05mm / 100 mm
Perpendicularity	0.05 mm
Material of manufacture	Cast iron (HT200)

Complete set of machine vices for milling machines QM16100.

Machine vice QM16100 - 1 pc.,
Mounting blocks - 1 set,
Handle - 1 pc.,
Instructions - 1 pc.
