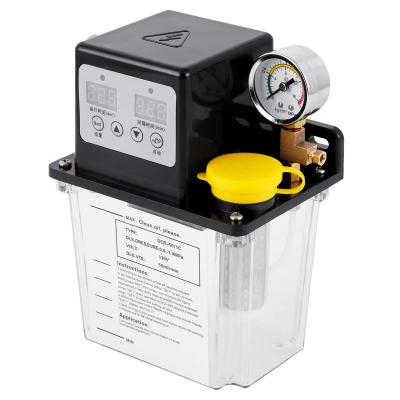

Automatic lubrication system DCR-50/1C.

Application of automatic lubrication system DCR-50/1C.

The automatic lubrication system DCR-50/1C is designed for forced supply of lubricant for machine tools and mechanisms.
For example, such as guide carriages of lathes or milling machines, nuts of ball screws (ball screws).
The use of an automatic lubrication system significantly extends the service life of the equipment.
The system is equipped with adjustment of the lubricant supply time, the interval between feeds, and also has two indicators (displays) for displaying information and settings.

Technical characteristics of automatic lubrication DCR-50/1C.

Model	DCR-50/1C
Supply voltage	220V 50Hz
Operating time adjustment range	1-999 sec
Switch-on interval adjustment range	1-999 min
Maximum pressure	1.0 MPa
Feed rate	50 ml/min
Oil type	Industrial oil class ISO 32 - 220
Tank volume	1.0 liter
Oil level alarm	is
Output	6 mm
Presence of pressure gauge	Yes

Dimensions of the automatic lubrication system DCR-50/1C.

Technical specifications and product contents are subject to change by the manufacturer without notice.

The DCR-50 oil pump uses an electromagnet as a power source to drive the piston up and down under the aid of a spring to achieve the purpose of oil absorption; easy to install, simple wiring;has warning function of insufficient liquid level and abnormal detection; whas motor self-protection device to prevent over-temperature and overload; when the oil pump is running, the pressure gauge can be displayed on the pressure gauge. The controller screen displays the lubrication time (seconds) and the intermittent time (minutes); the indicator light shows the operating status of the lubrication pump, with the”RST” button for forced lubrication; the pump has a wide range of applications. It can be used in centralized lubrication systems for machine tools, textiles, printing, plastics, light industry and automated machinery. The pump is equipped with a 1 liter,2 liter fuel tank,uses oil viscosity 32-68cst, and cleans the tank for up to 6 months depending on the working conditions.
