Blades for cutting plotters SUMMA » Blade, knife for SUMMA cutting plotter (45 degrees, offset 0.45)

45-Deg-Offcet-0.25-SUMMA-Blade-For-Cutting-Plotter

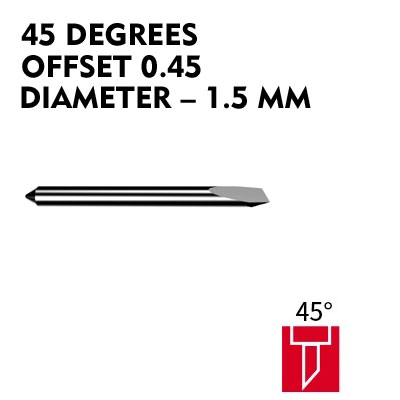

Blade, knife for SUMMA cutting plotter (45 degrees, offset 0.45)

Brand: YOUNSO CNC
Availability: Add to cart

PRICE: 1.95€ with VAT 21%

1.61 € without VAT

YOUR ORDER: pcs.
