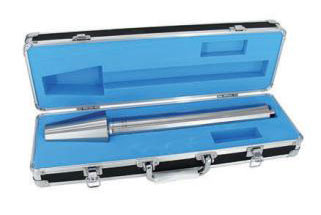

BT40-D40-250 Verification mandrel
- Availability: Add to cart
Description
BT40-D40-250 Verification mandrel.
Verification mandrels. Used to check the spindle of a milling machine or machine with numerical control in accordance with recommendations ISO 230-1:1986, ISO 230-1:2012.Cone type: BT40 (MAS 403 BT) DIN ISO 7388 - 2
Mandrel diameter, mm: 40
Mandrel length, mm: 250
Cylindricity deviation: 0.002 mm
Concentricity deviation: 0.003 mm.
