DESKAR WNMU080608EN-GM LF6018 replacement cutting insert for milling cutters
- Alloy: LF6018 DESKAR
- Brand: DESKAR
- Chipbreaker: GM
- Plate shape: W - Broken triangle (W***)
- Plate type: WNMU
- Processed material: K - cast iron M - Stainless steel P - Steel
- Round radius: 0,8
- Type of processing: Milling
- Availability: Add to cart
Description
Replacement carbide insert DESKAR WNMU080608EN-GM LF6018
Replacement carbide insert DESKAR WNMU080608EN-GM LF6018 is designed for milling materials such as: steel, stainless steel.
| Paste type: | WN..0608.. |
| Alloy: | LF6018 |
| Chipbreaker: | GM |
| Type of processing: | Semi-finish |
| Coated carbide (CVD) - LF6018 Special grade for processing stainless steel and thin alloys. - Strong and wear-resistant material. - Also used for machining heat-resistant alloy steel at low speeds. |
|
| Plate dimensions, mm: | |
| L: | 8.55 |
| IC: | 14 |
| S: | 8.3 |
| d: | 6.16 |
| Re: | 0.8 |
| Cutting modes | |
| Steel P15-P30 | Vc=80-180 m\min |
| 260-590 sfm | |
| Stainless steel M20-M30 | Vc=80-160 m\min |
| 260-520 sfm | |
| Cast iron K20-K40 | Vc=80-130 m\min |
| 260-430 sfm |
Suitable for cutters with mounted indexable inserts:MWFN90.

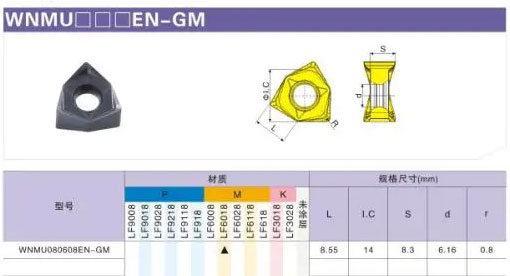

Download the DESKAR catalog page in PDF format: Download.
