Dividing head BS-0.

Product description dividing head BS-0

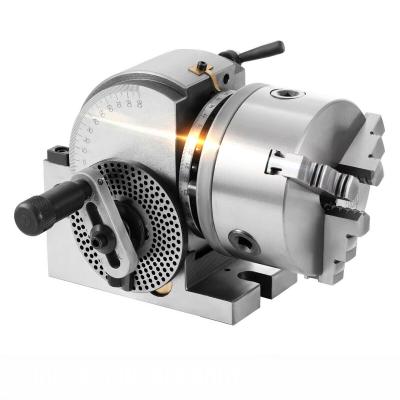

Dividing head BS-0 (125mm) Used on milling, drilling, sharpening machines.
Has a disk for direct division into 2, 3, 4, 6, 8, 12 and 24.
Using a worm gear and set of replaceable dividing disks allows you to make divisions:
With disk A: 15, 16, 17, 18, 19, 20,
With disk B: 21, 23, 27, 29, 31, 33,
/>With C disk: 37, 39, 41, 43, 47, 49.
The head spindle has an internal Morse taper and can be tilted to any angle from -10 to 90 degrees.

Dimensions of the BS0 dividing head.

Overall dimensions of dividing head BS0 AxBxH, mm - 193х131х173
Dimensions of dividing head base axb, mm 166х90
Height of centers h, mm - 100
Dimensions of tailstock A1xB1xH1, mm - 175х87х102
Width of installation grooves g and g1, mm - 16
Width of grooves for crackers, mm - 16
Internal cone of spindle/through hole in spindle, mm - KM2/18mm

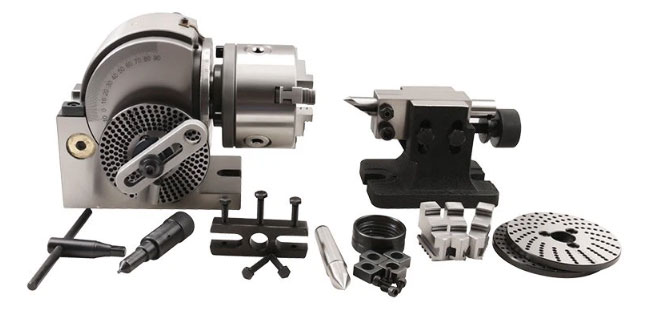

Supply kit for BS0 dividing head:

Dividing head BS0
Direct division disk with 24 fixed positions
Dividing disks for worm drive - 3 pcs and position selection mechanism
Tailstock, 3-jaw chuck 125mm with forward and reverse jaws and key
Flange for chuck
Thrust center KM2
Driver with clamping eyes
Set of nuts for installing the head and tailstock.
