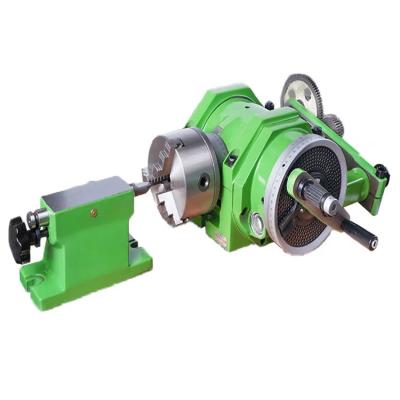

Dividing head FW80.
Dividing head for metalworking FW80
The dividing head is designed for precise angular positioning of the workpiece on metalworking machines such as milling and drilling. It allows:
- Divide a circle into equal parts: used when cutting teeth, making polyhedrons and distributing holes along a circle.
- Process spiral grooves: when milling spirals or cutting helical gears, ensuring coordinated rotation of the workpiece and axial feed.
- Create complex geometric shapes: an important quality in the production of parts of mechanisms, tools and other complex products in mechanical engineering.
How does a dividing head work
The workpiece is fixed in the chuck of the dividing head and then rotated by a given angle using a special system with a disk and a limb, providing high-precision division.
Application areas
Dividing heads are widely used in various industries mechanical engineering, instrument making and tool manufacturing for high-precision milling, drilling, grinding and boring operations.

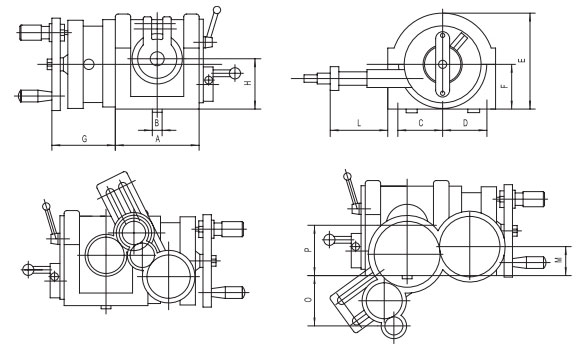

Dimensions of the FW80 dividing head.
| A | B | C | D | E | F | G | H | L | M | N | O | P | |
| FW8 0 | 139 | 14 | 77 | 73 | 147 | 77 | 98 | 80 | 106 | 43 | 30 | 60 | 80 |
FW80 dividing head delivery set:
FW80 dividing head - 1 setDownload the catalog page in pdf format. DOWNLOAD
