DWLN turning holder » DWLNR2525M08 lathe tool holder

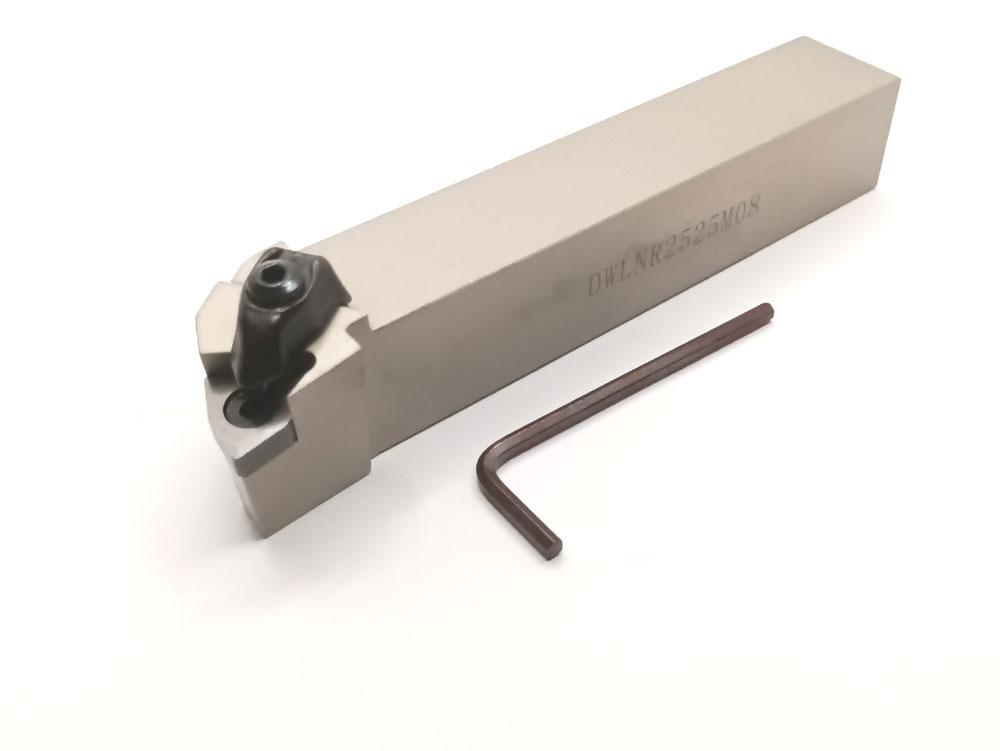

DWLNR2525M08 lathe tool holder

DWLNR2525M08

DWLNR2525M08 lathe tool holder

Back angle: 0° (*N**)
Execution: R - Right
Fastening system: D - Double clamp
Holder length: M - 150 mm
Holder section: 25 x 25
Holder type according to plan angle: L - 95°
Plate size: 08
Plate type: WN**0804**
Availability: Add to cart

PRICE: 22.00€ with VAT 21%

18.18 € without VAT

YOUR ORDER: pcs.
