Hand Hydraulic Pallet Lift Table Truck WP 1000 (1000 kg, 1000 Х 510 mm)
- Availability: Add to cart
Description

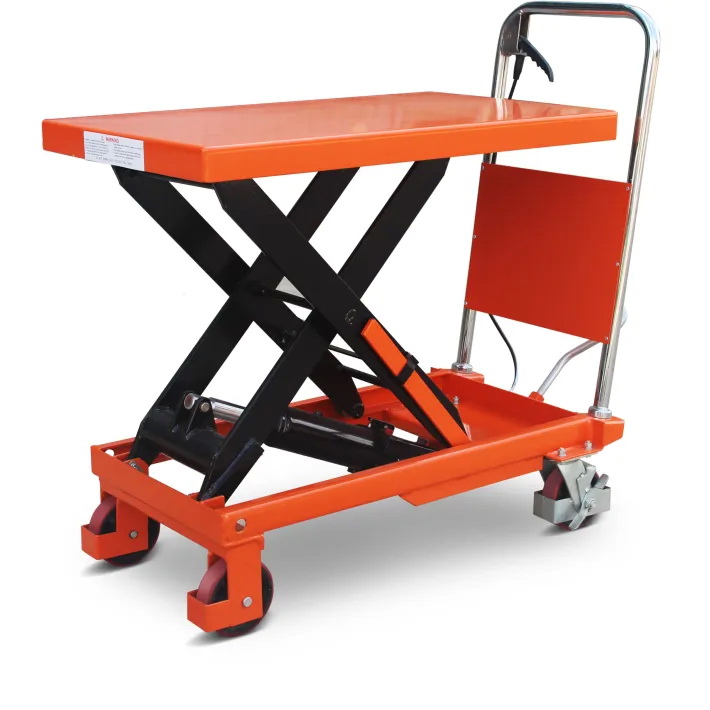

Hand hydraulic table truck WP1000
Specifications for Hand hydraulic table truck:
1) Model: WP300 / 350/500 / 700
2) Load capacity: 300kg / 350kg/500kg / 700kg
3) Max lifting height: 900mm / 1300mm/900mm / 1000mm
4) Min lowest height: 300mm / 350mm / 300mm/400mm
5) Dimensions of table: 815 x 500 x 50mm / 900x510x50mm/815 x 500 x 50mm / 1,000 x 5150x 50mm
6) Overall height: 970mm/960mm/970mm/1000mm
7) Self weight: 80kg / 105kg /83kg/ 117kg
8) Packing size: 925 x 515 x 320mm, 1015 x 515 x 370mm, 925x515x320mm,1,130 x 570 x 400mmConveyance:
| Model | WP-300 | WP-350 | WP-500 | WP-1000 |
| Capacity(kg) | 300 | 350 | 500 | 1000 |
| Max.height(mm) | 900 | 1300 | 900 | 1000 |
| Min.height(mm) | 280 | 350 | 280 | 350 |
| Self weight(mm) | 80 | 110 | 85 | 106 |
| Platform size(mm) | 810×500×50 | 900×500×50 | 810×500×50 | 1000×510×60 |
| Overall size(mm) | 1130×500×970 | 1250×500×960 | 1130×500×970 | 1300×510×1000 |
| Packing size(mm) | 925×515×290 | 990×520×360 | 930×520×290 | 1150×520×360 |
| 20ft container load(pcs) | 120 | 120 | 120 | 120 |
