SANOU K11-80 Lathe Chuck, Metal Lathe Chuck Self-centering 3 Jaw ,Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines.

Purpose of the lathe chuck:

Self-centering spiral-rack lathe chuck made of steel or cast iron, designed for installation on universal lathes, turret lathes, internal grinding machines, dividing heads and various devices.

Features of SANOU K11-80 lathe Chuck:

Range of clamping diameters:
Internal clamping range: 2-22 mm (0.078-0.866 inch),
External clamping range: 22-63 mm (0.866-2.48 inch).

Technical specifications of SANOU lathe Chuck:

• Lathe chuck type: three-jaw self-centering
• Mounting type: Cylindrical mount (DIN 6350)
• Lathe chuck jaws HRC: 58-62
• Centering accuracy: 0.05 mm / 0.002"
• Automatic centering: the lathe chuck does not need to be calibrated after each installation.
• Material: Body - high-quality cast iron; cams - tool steel.

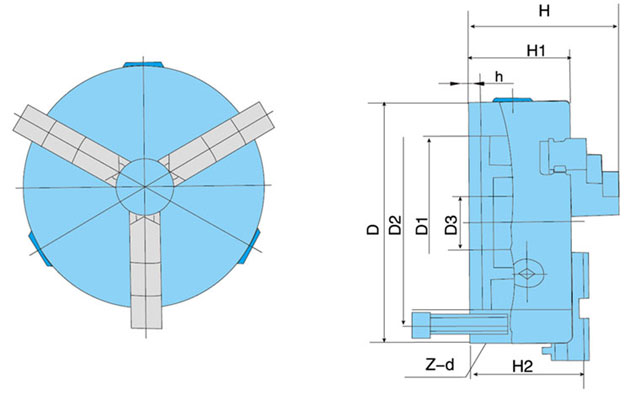

PARAMETER TABLE

Size	D1	D2	D3	H	H1	H2	h	Z-d	Max. input torque	Max. speed  r/min	Weight(kg)
80	55	66	16	66	50	-	3.5	3-M6	40	4800	1.9

Additional information for SANOU lathe Chuck:

1. Short cylindrical center mounting.

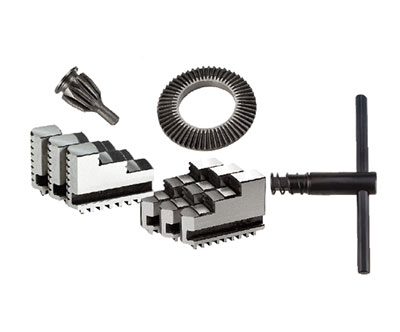

2. Model K11 chucks are provide with one-piece jaws(which include a set of internal jaws and a set external ones).

3. The jaws for K11A, K11C and K11D, K11E chuck are composedof two-piece jaws. They can perform as either internal or externaljaws throgh adjustment.

4. The iaws for K11A and K11D, K11E chucks conform to ISO3442 standard.

5. Model K11 chucks are supplied with traditional two-piece jaws.

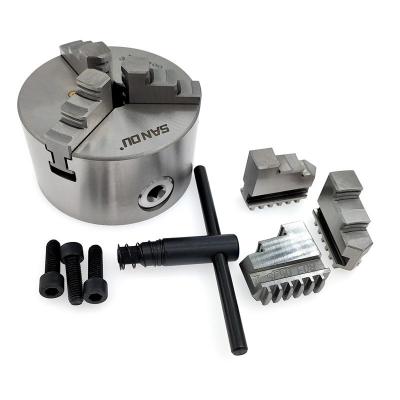

Equipment of SANOU K11-80 lathe Chuck:

• Lathe chuck - 1 pc
• Set of reverse jaws - 1 pc
• Key - 1 pc
• Instructions - 1 pc
• Packaging - 1 pc.
