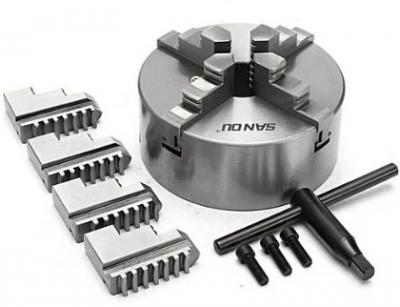

Lathe chuck K12-100 four-jaw SAN OU.
Four-jaw lathe chucks SAN OU K12-100 are used for clamping workpieces during turning on lathes and machining centers with numerical control, as well as when processing workpieces on milling machines.
Technical Specifications of K12-100 Lathe Chuck
The diameter of the lathe chuck is 160 mm.
Installation method: mounting on a faceplate.
Maximum rotation speed - up to 2500 rpm.
Manufacturer - SAN OU (China)
Complete set of lathe chuck K12-100:
Lathe chuck K12-100 - 1 pc.,
Straight jaws - 1 set,
Reverse couplings - 1 set,
Key - 1 pc.

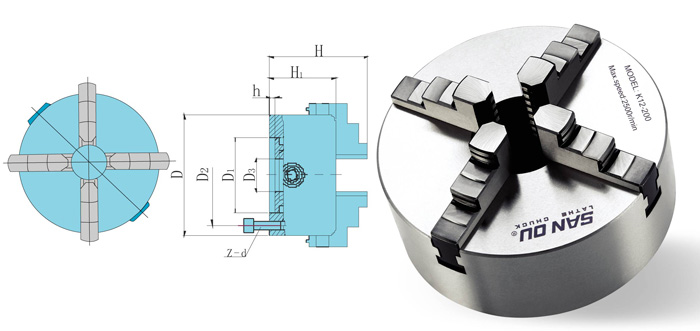

Four jaw lathe chuck size chart.
| Size D | D1 | D2 | D3 | H | H1 | h | z-d |
| K12-80 | 55 | 66 | 16 | 66 | 55 | 3.5 | 3-M6 |
| K12-100 | 72 | 84 | 22 | 74.5 | 55 | 3.5 | 3-M8 |
| K12-125 | 95 | 108 | 30 | 84 | 58 | 4 | 3-M8 |
| K12-130 | 100 | 115 | 30 | 86 | 60.5 | 3.5 | 3-M8 |
| K12-160 | 130 | 142 | 45 | 95 | 65 | 5 | 3-M8 |
| K12-160A | 130 | 142 | 45 | 109 | 65 | 5 | 3-M8 |
| K12-165 | 130 | 145 | 40 | 96.5 | 67.5 | 4.5 | 3-M8 |
| K12-190 | 155 | 172 | 54 | 105 | 77.5 | 5 | 3-M10 |
| K12-200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
| K12-200A | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
| K12-200C | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
| K12-240 | 195 | 215 | 70 | 120 | 75 | 8 | 3-M12 |
| K12-250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
| K12-250A | 206 | 226 | 80 | 136 | 80 | 5 | 3-M12 |
| K12-250C | 206 | 226 | 80 | 130 | 80 | 5 | 3-M12 |
| K12-325(325C) | 272 | 296 | 100 | 153.5 (154.5) | 97 | 12 | 3-M16 |
| K12-325A | 272 | 350 | 100 | 169.5 | 97 | 12 | 3-M16 |
| K12-380 (380C) | 325 | 350 | 145 | 155.5 (156.5) | 102.5 | 6 | 3-M16 |
| K12-380A | 325 | 350 | 145 | 171.5 | 102.5 | 6 | 3-M16 |
| K12-500A | 440 | 465 | 210 | 202 | 115.4 | 6 | 3-M16 |
