Description

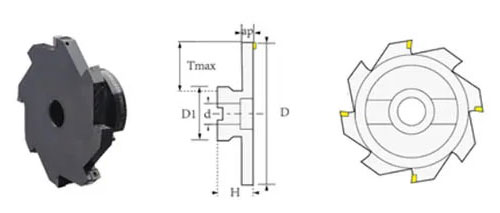

Milling Cutter Three-sided Edge SMP06-063x8T6-FMB22.
Application of milling cutter:
- Three-sided milling cutter is used for various types of processing on milling machines and CNC machines.
| Rough machining | Plane machining | Step face milling | Profile machining | Grooving cut-off | Excavating |
 |
Features of the milling cutter:
- The cutter is made of high-quality steel, hardened and strengthened, which has good impact resistance, reduces blade loss, and is strong and durable.
- The preferred 42CrMo cemented carbide steel has high hardness, good hardenability and resistance to thermal cracks.
Package includes:
- Milling Cutter Three-sided Edge - 1 Pcs
- Wrench - 1 Pcs
- Plastic case - 1 Pcs
| Model | D | d | D1 | Tmax | ap | H | Insert | Number of teeth |
Screw | Wrench |
| SMP06-063*8 T6-FMB22 | 63 | 22 | 45 | 12 | 8 | 40 | MP**0603 | 6 | M2.5 x 6 | T8 |
| SMP06 080*8 Т8-FMB22 | 80 | 22 | 45 | 21 | 8 | 40 | MP**0603 | 8 | M2.5 x 6 | T8 |
| SMP06-080*10T8-FMB22 | 80 | 22 | 45 | 21 | 10 | 40 | MP**0603 | 8 | M2.5 x 6 | T8 |
| SMP06-100*8Т8-FMB22 | 100 | 22 | 50 | 28 | 8 | 42 | MP**0603 | 8 | M2.5 x 6 | T8 |
| SMP06-100*10T8-FMB22 | 100 | 22 | 50 | 28 | 10 | 42 | MP**0603 | 8 | M2.5 x 6 | T8 |
| SMP08-100*12T8-FMB22 | 100 | 22 | 50 | 28 | 12 | 42 | MP**0803 | 8 | M3.0 x 7 | T8 |
| SMP06-125*10T10-FMB32 | 125 | 32 | 65 | 33 | 10 | 45 | MP**0603 | 10 | M2.5 x 6 | T8 |
| SMP08-125*12T10-FMB32 | 125 | 32 | 65 | 33 | 12 | 45 | MP**0803 | 10 | M3.0 x 7 | T8 |
| SMP12-125*16T8-FMB32 | 125 | 32 | 65 | 33 | 16 | 45 | MP**1204 | 8 | M5 x 12 | T20 |
| SMP06-160*10T12-FMB40 | 160 | 40 | 80 | 45 | 10 | 55 | MP**0603 | 12 | M2.5 x 6 | T8 |
| SMP08-160*12T12-FMB40 | 160 | 40 | 80 | 45 | 10 | 55 | MP**0803 | 12 | M3.0 x 7 | T8 |
| SMP12-160*16T10-FMB40 | 160 | 40 | 80 | 45 | 16 | 55 | MP**1204 | 10 | M5 x 12 | T20 |
| SMP12-200*16T10-FMB40 | 200 | 40 | 91 | 53 | 16 | 55 | MP**1204 | 10 | M5 x 12 | T20 |
| SMP12-200*18T10-FMB40 | 200 | 40 | 91 | 53 | 18 | 55 | MP**1204 | 10 | M5 x 12 | T20 |
| SMP12-200*20T10-FMB40 | 200 | 40 | 91 | 53 | 20 | 55 | MP**1204 | 10 | M5 x 12 | T20 |
| SMP12-250*20T14-FMB40 | 250 | 40 | 91 | 53 | 20 | 55 | MP**1204 | 14 | M5 x 12 | T20 |
