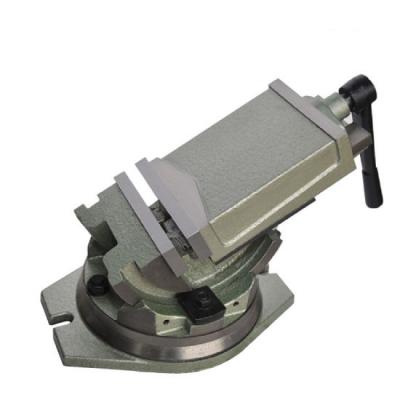

Machine vice, double rotating QHK125L for milling machines.

Application and features of the vice for the QHK125L milling machine

Rotary machine vice QHK125L is used to secure workpieces on milling machines or machines with numerical control, and can also be used on cutting machines and drilling machines.
The QHK125L vice can be rotated in two planes.
In the horizontal plane: 360°.
In the vertical plane: from 0° up to 90° relative to the base.
Strong, solid design with a closed screw protects the screw from dirt.
The thrust bearing mounted on the shaft allows you to easily create a large clamping force.
The rotating base in two planes of the QHK125L vice allows you to fix workpieces with rotation both in the horizontal plane and in the vertical plane, which provides a wide range of applications for the vice.
The scale printed on the rotating base of the QHK125L vice is made by mechanical engraving, which ensures excellent readability of the scale and its unlimited life service.
The body of the QHK125L machine vice is made of HT200 cast iron.
The clamping jaws of the machine vice are made of high-quality hardened steel with subsequent grinding.
The clamping jaws are attached to the QHK125L vice using bolts, which allows you to replace them if necessary.
The screw design is a closed screw.

Technical characteristics of the vice for the QHK125L milling machine.

Technical characteristics
Vise model	QHK125L
Jaw width, mm	125
Height of jaws, mm	45
Vise height, mm
Maximum opening, mm	140
Groove width, mm
Clamping force, N	19000
Rotating base	is
Scale value on rotary base	1°
Vise precision
Parallelism	0.025mm / 100 mm
Perpendicularity	0.025 mm
Material of manufacture	Cast iron (HT200)

Complete set of machine vices for QHK125L milling machines.

Machine vise QHK125L - 1 pc.,
Mounting nuts - 1 set,
Handle - 1 pc.,
Instructions - 1 pc.
The manufacturer reserves the right to change the place of production of the goods and the appearance of the goods without notifying the dealer.
