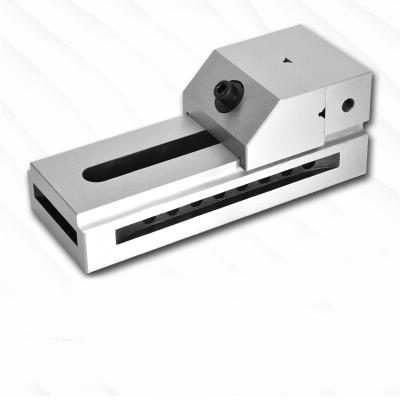

Precision pattern machine vice QKG100 for milling machines.

Scope and features of the QKG100 precision pattern vice for milling machine.

Precision machine vise QKG100 is used for securing workpieces on milling machines or machines with numerical control.
Precision machine vise QKG100 can be used as a tool vice.
Also, machine precision vices can be used to work on electroerosive, grinding and drilling machines
The special mechanism of the QKG100 precision vice ensures reliable clamping of the jaw to the guide and reliable fixation of the workpiece.
The movable jaw has a groove for clamping cylindrical parts parts.
All planes of the pattern vise have high parallelism.
The body of the QKG100 machine vise is made of high-quality alloy steel.
The clamping jaws of the machine vise are made of high-quality hardened steel with subsequent grinding.
Clamping the jaws are attached to the QKG100 vice with bolts, which allows you to replace them if necessary.
The design of the screw is a closed screw.
Standard - TYPE 3340.

Technical characteristics of QKG100 milling machine vice.

Technical characteristics
Vise model	QKG100
Vise length L, mm	245
Vise width B, mm	100
Jaw width, mm	100
Jaw height H, mm	45
Vise height, mm
Maximum opening, mm	125
Clamping force, kg	2000
Groove width, mm
Rotating base	No
Scale value on rotary base
Vise precision
Parallelism	0.005mm / 100 mm
Perpendicularity	0.005 mm
Material of manufacture	Alloy steel

Complete set of machine vices for QKG100 milling machines.

Machine vice QKG100 - 1 pc.
Instructions - 1 pc.
The manufacturer reserves the right to change the place of production of the goods and the appearance of the goods without notifying the dealer.
