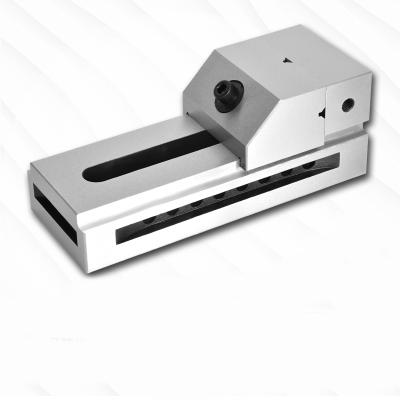

Precision pattern machine vice QKG25 for milling machines.

Scope and features of QKG25 precision pattern vice for milling machine.

Precision machine vise QKG25 is used for securing workpieces on milling machines or machines with numerical control.
Precision machine vise QKG25 can be used as a tool vice.
Also, machine precision vices can be used to work on electroerosive, grinding and drilling machines
The special mechanism of the QKG25 precision vice ensures reliable clamping of the jaw to the guide and reliable fixation of the workpiece.
The movable jaw has a groove for clamping cylindrical parts.
All planes of the pattern vise have high parallelism.
The body of the QKG25 machine vise is made of high-quality alloy steel.
The clamping jaws of the machine vise are made of high-quality hardened steel with subsequent grinding.
Clamping The jaws are attached to the QKG25 vice with bolts, allowing them to be replaced if necessary.
The screw design is a closed screw.
Standard - TYPE 3340.

Technical characteristics of QKG25 vice for milling machine.

Technical characteristics
Vise model	QKG25
Vise length L, mm	65.4
Vise width B, mm	25
Jaw width, mm	25
Jaw height H, mm	9.15
Vise height, mm
Maximum opening, mm	22
Clamping force, kg	2000
Groove width, mm
Rotating base	No
Scale value on rotary base
Vise precision
Parallelism	0.005mm / 100 mm
Perpendicularity	0.005 mm
Material of manufacture	Alloy steel

Complete set of machine vices for QKG25 milling machines.

Machine vice QKG25 - 1 pc.
Instructions - 1 pc.
The manufacturer reserves the right to change the place of production of the goods and the appearance of the goods without notifying the dealer.
