Collet lathe chucks.
Collet lathe chucks are used for processing workpieces on lathes. |
 |

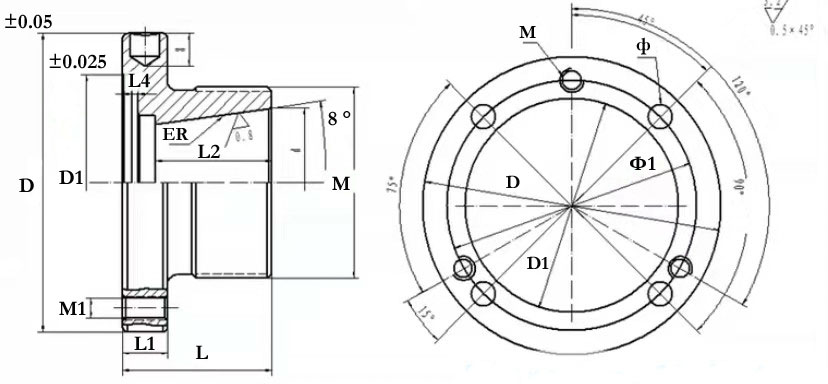

Technical characteristics of lathe collet chucks.
| D | D1 | f f1 | M1 | F | L | L1 | L3 | L4 | M | --- | |
| Collet lathe chuck ER40-80 | 80 | 55 | 66 | M6 | 6.5 | 40 | 12 | 55 | 6 | M50*1.5 | 63 |
| Collet lathe chuck ER40-100 | 100 | 72 | 84 | M8 | 8.5 | 40 | 12 | 55 | 6 | M50*1.5 | 63 |
| Collet lathe chuck ER40-125 | 125 | 95 | 108 | M8 | 8.5 | 40 | 12 | 55 | 6 | M50*1.5 | 63 |
| Collet lathe chuck ER40-130 | 130 | 100 | 115 | M8 | 8.5 | 40 | 12 | 78 | 6 | M50*1.5 | 63 |
| Collet lathe chuck ER50-100 | 100 | 72 | 84 | M8 | 8.5 | 50 | 18 | 78 | 6 | M50*1.5 | 78 |
| Collet lathe chuck ER50-125 | 125 | 95 | 108 | M8 | 8.5 | 50 | 18 | 78 | 6 | M64*2 | 78 |
| Collet lathe chuck ER50-130 | 130 | 100 | 115 | M8 | 8.5 | 50 | 18 | 78 | 6 | M64*2 | 78 |
| Collet lathe chuck ER50-160 | 160 | 130 | 142 | M8 | 8.5 | 50 | 18 | 78 | 6 | M64*2 | 78 |
